GFA 202

Product Features

GFA 202 is a 2-channel rugged and reliable ultrasonic gas flow meter:

capable of measuring flow speeds up to 40 m/s
Accuracy better than 1.0% for Qt … Qmax and better than 2.0% for Qmin … Qt
Rangeability 1:250
Available for medium pressure up to 25 MPa
Fulfills requirements of EU Directives MID, ATEX and PED
Requires 3 x DN straight pipe run after the meter
Requires 10 x DN straight run before the meter if installed with a standard Zanker type flow conditioner plate
Can be installed with 5xDN straight run with integrally installed flow conditioner EFSFC-V3
With integral PTZ correction feature (optional)
With integral battery for 5 years autonomous operation (optional)

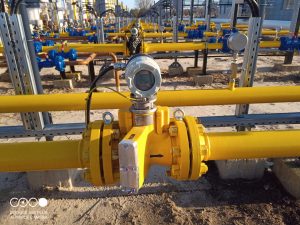

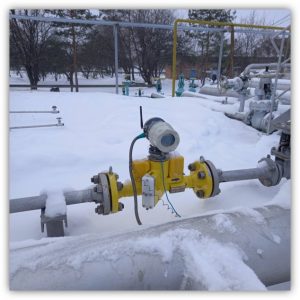

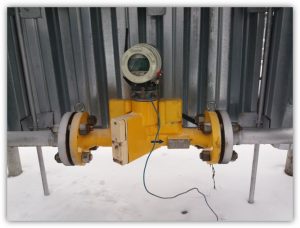

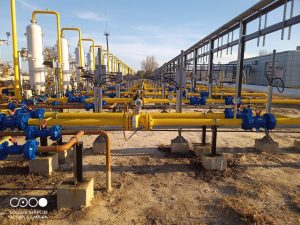

Gallery

Reliable flow metering:

GFA 202 ultrasonic flow meters are designed for reliable flow metering of natural gas, biomethane, H2+NG mixtures and other gases. Measurement accuracy is better than 1.0% for flow range Qt to Qmax and better than 2.0% for flow range Qmin to Qt.

Straight pipes required:

These meters should be installed with 10xDN straight pipe run with standard Zanker type flow conditioner before the meter and 3xDN straight pipe run after the meter, OR, with 5xDN straight pipe run with flow conditioner EFSFC-V3 before the meter and 3xDN straight pipe run after the meter.

Since the requirements for straight runs are similar to those for mechanical meters, GFA202 meters are the optimal solution for replacement of mechanical meters in existing metering station without the need for any modifications.

Available in different sizes:

GFA202 meters can measure flow speeds as high as 40 m/s which allows for rangeability 1:250. The meters are serially manufactured for line sizes 50 mm up to 600 mm and with flow rating range G100 (Qmax=160 m3/h) to G25000 (Qmax=40000 m3/h). Larger sizes can be supplied under order.

Electronics:

GFA202 meters have an integrally mounted electronics unit with local graphical display which also provides for configuration and servicing of the device in-situ. The meters have 2 user configurable LF/HF pulse outputs and a serial RS485 port for digital communication (MODBUS RTU). Besides these, the meters can be supplied with 2 discrete outputs and an additional RS 485 port or a 4…20 mA current output.

GFA202 meters operate from external 12 VDC power and can also be supplied with integral batteries for autonomous operation. The minimum battery life time is 5 years.

Certified for hazardous area:

GFA 202 meters are certified for installation in hazardous locations (zone 1, 2; gas group IIC) and are tested for pressure containment at manufacturer’s facilities with test pressure 1.5 times the maximum operating pressure. Factory calibration of meters is carried out after fabrication on air at ambient conditions. GFA 202 meters can also be supplied with integral PTZ volume correction feature with integral pressure and temperature measurement.

GFA202 meters are certified as per the applicable EU Directives MID, ATEX and PED

TECHNICAL CHARACTERISTICS

S. No.	Feature	DESCRIPTION
1	No. of measurement channels	2
2	No. of sensor pairs	2
3	Flow speed at Qmax, m/s	40
4	Rangeability (Qmin:Qmax)	1:250
5	Accuracy for range Qt … Qmax, better than, %	1.0
6	Accuracy for range Qmin … Qt, better than, %	2.0
7	Standard sizes, DN, mm	50; 80; 100; 150; 200; 250; 300; 400
8	Standard pressure ratings, MPa	1.6; 2.5; 4.0; 6.3; 10; 16; 25
9	Operating temperature range, °C	-25 …+55 (optional -25 … +70)
10	Ambient temperature range, °C	-25 …+55 (optional -25 … +70)
11	Permissible relative Humidity	Up to 100%
12	Ingress protection	IP 67
13	Ex marking (ATEX)	II 2 (1) G Ex db ib [ia Ga] IIC T4 Gb
14	Electronics Unit	Integrally mounted with graphic display
15	Standards outputs	2 x LF/HF pulse outputs; 1 x RS 485 (MODBUS RTU)
16	Additional outputs (optional)	2 x Discrete outputs; NO, max. 50 mA, 24 V 1 x RS 485 (MODBUS RTU) or 4…20 mA current output
17	PTZ correction with P & T measurement	Optional, Compression factor calculation : NX19 mod., GERG-91 mod. or SGERG88
18	Process connections	Flanges ASME B 16.5 / EN 1092
19	Material of inline section	CS S355J2 / AlMg10 / SS 316
20	Factory calibration	On Air at ambient conditions
21	Hydraulic / Pneumatic Test pressure	1.5 times Max operating pressure
22	Applicable EU Directives	MID, ATEX, PED

Certificates

Measuring Instruments directive (MID) 2014/32/EU

EU Type examination certificate SK-23-MI002-SMU006 dtd 12/09/17 issued by Notified Body 1781 (SMU);

ATEX Equipment Directive 2014/34/EU

EU type examination certificate ICQC 24 ATEX 0511X dtd 13/05/2024 issued by Notified Body 2549 (ICQC);

Pressure Equipment Directive (PED)

EU Type Examination certificate 24.93062/PED0205104 issued by Notified Body 2261 (TUV Nord)

Installation Requirements

3 x DN straight pipe run is required after the meter
10 x DN straight pipe run with Zanker type flow conditioner or 5 x DN straight run with integral flow conditioner EFSFC-V3 is required after the meter
Flange to Flange size of all GFA 202 meters is 3 x DN (Exception : GFA 202 DN50 meter with integral batteries has flange to flange size 250 mm)
