GFE 424

Product Description

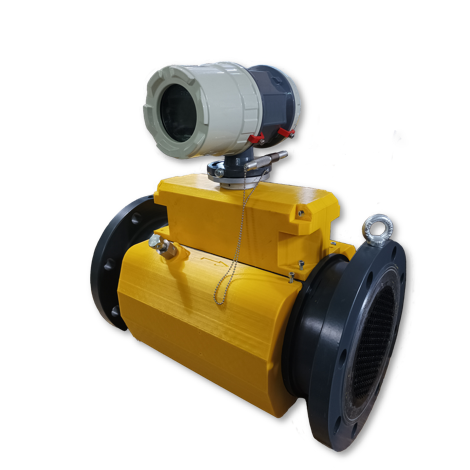

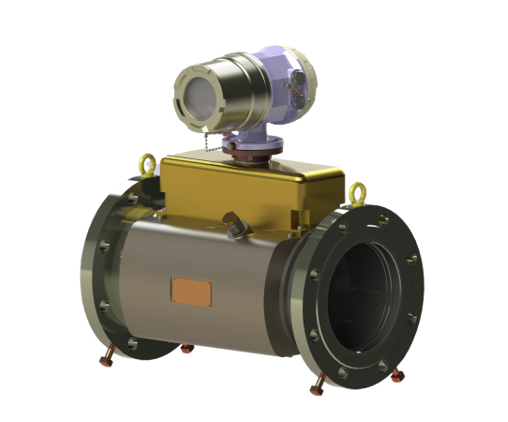

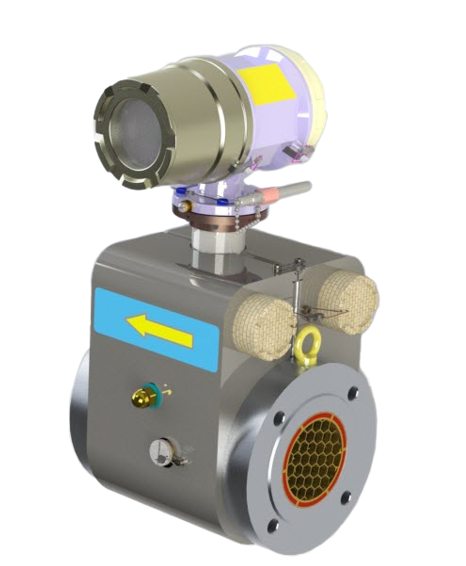

GFA 424 is a 4-channel high accuracy ultrasonic gas flow meter:

capable of measuring flow speeds up to 25 m/s
Accuracy better than 1.0% for Qt … Qmax and better than 2.0% for Qmin … Qt
Rangeability 1:160
Does not require any straight pipe run before and after the meter, performance unaffected by flow disturbances upstream or downstream.
Process connection: Flange ANSI#150 or PN16
Fulfills requirements of EU Directives MID, ATEX and PED
Pressure loss across the meter not more than 3.5 kPa at Qmax
Available in sizes DN 50 (G100); DN 80 (G250); DN 100 (G400); DN 150 (G1000) & DN 200 (G1600)
With integral PTZ correction feature (optional)
With integral battery for 5 years autonomous operation (optional)

Gallery

Reliable flow metering:

GFA 424 ultrasonic flow meters are the latest addition to the GFA family and are designed for accurate and reliable custody transfer flow metering of natural gas, biomethane, H2+NG mixtures and other gases.

Straight pipes required:

These meters do not require any straight runs for installation, neither before the meter, nor after the meter. Perturbances to the flow do not affect the meter performance. The meters have been tested as per the requirements of OIML R137 with various types of local resistances and are certified as per the applicable EU Directives MID, ATEX and PED. The pressure drop across the meter does not exceed 3.5 kPa.

Since there are no requirements for straight runs, GFA 424 meters are the optimal solution for replacement of all types of mechanical and other kinds of meters without the need for any modifications.

Available in different sizes:

GFA 424 meters can measure flow speeds up to 25 m/s which allows for rangeability 1:160. The meters are serially manufactured for line sizes DN 50 (G100); DN 80 (G250); DN 100 (G400); DN 150 (G1000) & DN 200 (G1600) with flanged process connection ANSI#150 and PN16.

Electronics:

GFA 424 meters have an integrally mounted electronics unit with local graphical display which also provides for configuration and servicing of the device in-situ. The meters have 2 user configurable LF/HF pulse outputs and a serial RS485 port for digital communication (MODBUS RTU). Besides these, the meters can be supplied with 2 discrete outputs and an additional RS 485 port or a 4…20 mA current output.

GFA 424 meters operate from external 12 VDC power and can also be supplied with integral batteries for autonomous operation. The minimum battery life time is 5 years.

Certified for hazardous area:

GFA 424 meters are certified for installation in hazardous locations (zone 1, 2; gas group IIC) and are tested for pressure containment at manufacturer’s facilities with test pressure 1.5 times the maximum operating pressure. Factory calibration of meters is carried out after fabrication on air at ambient conditions. GFA 424 meters can also be supplied with integral PTZ volume correction feature with integral pressure and temperature measurement.

Certificates

Measuring Instruments directive (MID) 2014/32/EU

EU Type examination certificate SK-23-MI002-SMU006 dtd 12/09/17 issued by Notified Body 1781 (SMU);

ATEX Equipment Directive 2014/34/EU

EU type examination certificate ICQC 24 ATEX 0511X dtd 13/05/2024 issued by Notified Body 2549 (ICQC);

Pressure Equipment Directive (PED)

EU Type Examination certificate 24.93062/PED0205104 issued by Notified Body 2261 (TUV Nord)

Compliance

OIML R 137

Test report No. 15 dtd. 01/05/2026 issued by IVANO-FRANKIVSK SCIENTIFIC AND PRODUCTION CENTER FOR STANDARTIZATION, METROLOGY AND CERTIFICATION

Installation Requirements

No straight pipe runs required before or after the meter. The meter performance is unaffected by local resistances to flow

TECHNICAL DATA SHEET FOR ULTRASONIC GAS FLOW METER GFA 424

S. No.	Feature	DESCRIPTION
1	No. of measurement channels	4
2	No. of sensor pairs	4
3	Flow speed at Qmax, m/s	25
4	Rangeability (Qmin:Qmax)	1:250
5	Accuracy for range Qt .. Qmax, better than, %	0.5
6	Accuracy for range Qmin … Qt, better than, %	1.0
7	Standard sizes, DN, mm	50; 80; 100; 150; 200;
8	Standard pressure ratings, MPa	1.6 (flanges PN 16); 2.0 (flanges ANSI #150)
9	Operating temperature range, °C	-25 …+55 (optional -25 … +70)
10	Ambient temperature range, °C	-25 …+55 (optional -25 … +70)
11	Permissible relative Humidity	Up to 100%
12	Ingress protection	IP 67
13	Ex marking (ATEX)	II 2 (1) G Ex db ib [ia Ga] IIC T4 Gb
14	Electronics Unit	Integrally mounted with graphic display
15	Standards outputs	2 x LF/HF pulse outputs; 1 x RS 485 (MODBUS RTU)
16	Additional outputs (optional)	2 x Discrete outputs; NO, max. 50 mA, 24 V 1 x RS 485 (MODBUS RTU) or 4…20 mA current output
17	PTZ correction with P & T measurement	Optional, Compression factor calculation : NX19 mod., GERG-91 mod. or SGERG88
18	Pressure drop across the meter	3.5 kPa
19	Material of inline section	CS S355J2 / AlMg10 / SS 316
20	Factory calibration	On Air at ambient conditions
21	Hydraulic / Pneumatic Test pressure	1.5 times Max operating pressure
22	Applicable EU Directives	MID, ATEX, PED
